MST S WS 30 AU BL | Hirschmann Test & Measurement

2 mm plug, solder connection, 0.5-1.0 mm², CAT III, blue, MST S WS 30 AU BL

Order No.: 15F692
EAN: 4099889667400
MPN:
MST S WS 30 AU BL
975 090-702
Series: MST S WS 30 Au
Hirschmann Test & Measurement

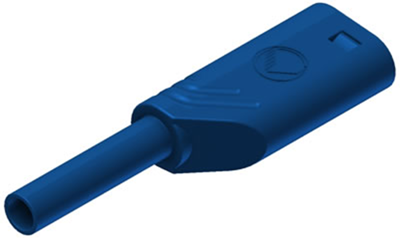

MST S WS 30 AU BL Hirschmann Test & Measurement Laboratory Connectors Image 1
MST S WS 30 AU BL Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Print
Key Specification:
Version plug
diameter 2 mm
Colour blue
Connection solder connection
contact surface gold-plated
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.7846 € *
Available: 22 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Safety stackable plug, MST S WS 30 AU BL, HIRSCHMANN

Contact-protected tower plug with solder connection for cables from 0.5 mm² to 1 mm². Cable outer diameter max. 2.9 mm. Spring-loaded 2 mm plug and unspring-loaded 2 mm socket, stackable.
Technical specifications
Connection solder connection
Version plug
Rated Voltage 1000 V
Rated current 10 A
Touch safe Yes
diameter 2 mm
Colour blue
contact surface gold-plated
Length 41 mm
Cable cross-section 0.5-1.0 mm²
max. Cable diameter 2.9 mm
Rated category CAT III
Stackable Yes
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
