MST S WS 30 AU GE | Hirschmann Test & Measurement

2 mm plug, solder connection, 0.5-1.0 mm², CAT III, yellow, MST S WS 30 AU GE

Order No.: 15F694
EAN: 4099891917579
MPN:
MST S WS 30 AU GE
975 090-703
Series: MST S WS 30 Au
Hirschmann Test & Measurement
MST S WS 30 AU GE Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, MST S WS 30 AU GE, Hirschmann Test & Measurement

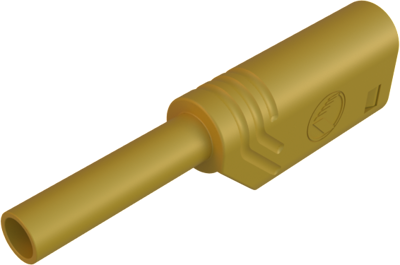

The MST S WS 30 AU GE is a safety stackable plug with solder connection for leads from 0.5 mm² to 1.0 mm². Outer diameter of lead max. 2.9 mm. Spring loaded plug and unsprung 2 mm socket for onward connection capability, 1000 V-system, IEC 61010. Simple assembly by "Click-System".

Technical specifications
Connection solder connection
Version plug
Rated Voltage 1000 V
Rated current 10 A
Touch safe Yes
diameter 2 mm
Colour yellow
contact surface gold-plated
Length 41.5 mm
Cable cross-section 0.5-1.0 mm²
max. Cable diameter 2.9 mm
Rated category CAT III
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
