MST S WS 30 AU RT | Hirschmann Test & Measurement
2 mm plug, solder connection, 0.5-1.0 mm², CAT III, red, MST S WS 30 AU RT
Unit Price (€ / pc.)
2.7846 € *
Available: 33 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale

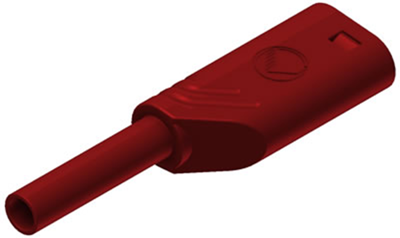

Safety stackable plug, MST S WS 30 AU RT, HIRSCHMANN

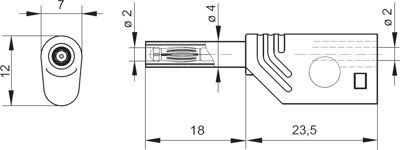

Contact-protected tower plug with solder connection for cables from 0.5 mm² to 1 mm². Cable outer diameter max. 2.9 mm. Spring-loaded 2 mm plug and unspring-loaded 2 mm socket, stackable.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | Yes | |
| Durchmesser | 2 mm | |
| Farbe | rot | |
| Kontaktoberfläche | vergoldet | |
| Länge | 41 mm | |
| Leiterquerschnitt | 0,5-1,0 mm² | |
| max. Kabeldurchmesser | 2.9 mm | |
| Messkategorie | CAT III | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
