MST S WS 30 AU SW | Hirschmann Test & Measurement

2 mm plug, solder connection, 0.5-1.0 mm², CAT III, black, MST S WS 30 AU SW

Order No.: 15F690
EAN: 4099889667387
MPN:
MST S WS 30 AU SW
975 090-700
Series: MST S WS 30 Au
Hirschmann Test & Measurement
MST S WS 30 AU SW Hirschmann Test & Measurement Laboratory Connectors

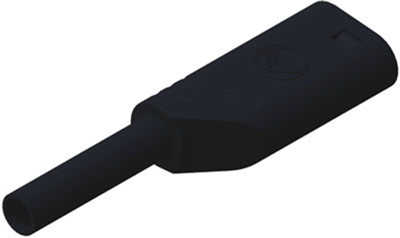

Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 67 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale

Laboratory connector, MST S WS 30 AU SW, HIRSCHMANN

The MST S WS 30 AU SW is a safety stackable plug with solder connection for leads from 0.5 mm² to 1.0 mm² and the outer diameter of the lead is max. 2.9 mm. It is equipped with spring loaded plug and unsprung 2 mm socket for onward connection capability. Simple assembly by Click-System.

Technical specifications
Connection solder connection
Version plug
Rated Voltage 1000 V
Rated current 10 A
Touch safe Yes
diameter 2 mm
Colour black
contact surface gold-plated
Length 41 mm
Cable cross-section 0.5-1.0 mm²
max. Cable diameter 2.9 mm
Rated category CAT III
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
