PB 4 SW | Hirschmann Test & Measurement

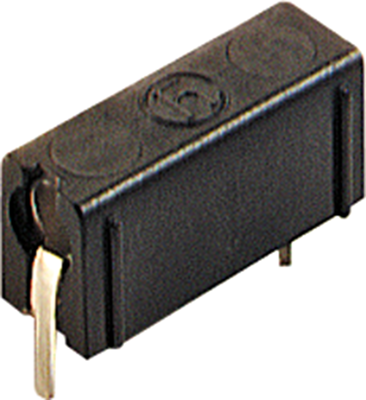

4 mm socket, solder connection, CAT O, black, PB 4 SW
Unit Price (€ / pc.)
1.9873 € *
Available: 458 pcs.
Leadtime: On Request **
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
50 pcs.
1.6779 €
100 pcs.
1.5470 €
250 pcs.
1.4756 €
1000 pcs.
1.3447 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test jacks, 4.0 mm, type Hirschmann T & M PB 4.
For 4.0 mm laboratory plugs. For soldering onto PCBs. Made of tinned brass; Rated voltage: 60 VDC. Rated current: 16 A. For screw mounting on the PCB by means of cylindrical head screw BZ 2.2 DIN 7971. Operating temperatures: –25 to +85 °C.
Type: PB 4, black
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | verzinnt | |

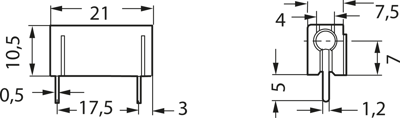

| Länge | 21 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
