SAB 2630 S1,9 AU BR | Hirschmann Test & Measurement

4 mm socket, solder connection, mounting Ø 11 mm, CAT II, brown, SAB 2630 S1,9 AU BR

Order No.: 22F291
EAN: 4099891949624
MPN:
SAB 2630 S1,9 AU BR
972 360-705
Series: SAB 2630 S 1,9
Hirschmann Test & Measurement

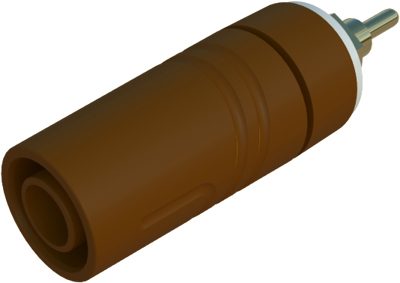

SAB 2630 S1,9 AU BR Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7608 €
50 pcs.
2.5347 €
100 pcs.
2.3919 €
500 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale

Laboratory connector, SAB 2630 S1,9 AU BR, Hirschmann Test & Measurement

The SAB 2630 S1,9 AU BR is a safety surface-mounted socket, 4 mm diameter, contact-protected, gold-plated brass with solder pin Ø 1,9mm. For installation into switch-panels and equipment-chassis of 1-4mm thickness. Connects with safety test leads.

Technical specifications
Connection solder connection
Version socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 11 mm
Colour brown
contact surface gold-plated
Length 43 mm
Rated category CAT II
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
