SAB 2640 LK AU WS | Hirschmann Test & Measurement
4 mm socket, solder connection, mounting Ø 11 mm, CAT II, white, SAB 2640 LK AU WS
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.3915 €
50 pcs.
3.2130 €
100 pcs.
3.0345 €
500 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale
Laboratory connector, SAB 2640 LK AU WS, Hirschmann Test & Measurement

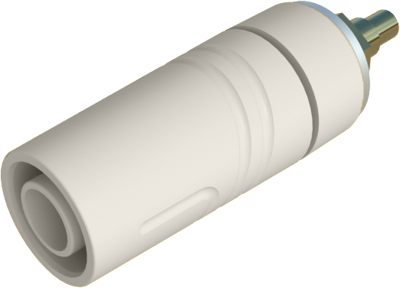

The SAB 2640 LK AU WS is a safety surface-mounted socket, 4 mm diameter, contact-protected, gold-plated brass with solder connection. For installation into switch-panels and equipment-chassis of 1-4mm thickness. Connects with safety test leads.
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 11 mm | |
| Colour | white | |
| contact surface | gold-plated | |
| Length | 40 mm | |
| Rated category | CAT II |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
