SEB 2610 F4,8 GR | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, gray, SEB 2610 F4,8 GR
Unit Price (€ / pc.)
2.2253 € *
Available: 50 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2253 €
50 pcs.
1.8921 €
100 pcs.
1.8207 €
500 pcs.
1.7374 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

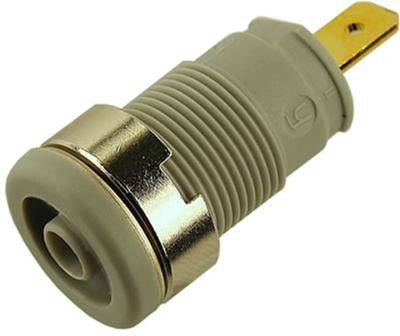

Laboratory connector, SEB 2610 F4,8 GR, HIRSCHMANN
The SEB 2610 F4,8 GR is a safety built-in socket with 4 mm diameter and has protected contacts, with 4.8 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.
< Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 25 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | grau | |
| Kontaktoberfläche | vergoldet | |
| Länge | 32 mm | |
| Messkategorie | CAT III |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
