SEB 2620 F6,3 GN/GE | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow/green, SEB 2620 F6,3 GN/GE
Unit Price (€ / pc.)
2.7727 € *
Available: 47 pcs.
Leadtime: On Request **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.4395 €
100 pcs.
2.1539 €
500 pcs.
2.0706 €
1000 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale
Laboratory connector, SEB 2620 F6,3 GN/GE, HIRSCHMANN

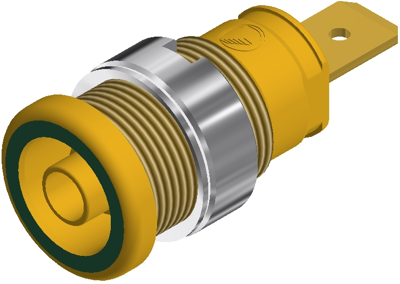

The SEB 2620 F6,3 GN/GE is a safety built-in socket with 4 mm diameter and has protected contacts, with 6.3 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.
Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | gelb/grün | |
| Kontaktoberfläche | vergoldet | |
| Länge | 33 mm | |
| Messkategorie | CAT III |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
