SEB 2620 F6,3 SW | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, black, SEB 2620 F6,3 SW
Unit Price (€ / pc.)
2.7727 € *
Available: 344 pcs.
Available in 6 Days: 750 pcs.
Leadtime: On Request **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.4395 €
100 pcs.
2.1539 €
500 pcs.
2.0706 €
1000 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale
Laboratory connector, SEB 2620 F6,3 SW, HIRSCHMANN

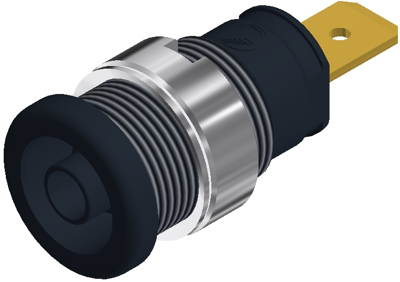

The SEB 2620 F6,3 SW is a safety built-in socket with 4 mm diameter and has protected contacts, with 6.3 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.
Technical specifications
| Connection | flat plug connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | black | |
| contact surface | gold-plated | |
| Length | 33 mm | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
