SEP 2610 F4,8 BL | Hirschmann Test & Measurement

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, blue, SEP 2610 F4,8 BL

Order No.: 25F2084
EAN: 4099889671940
MPN:
SEP 2610 F4,8 BL
972 361-102
Series: SEP 2610 F4,8
Hirschmann Test & Measurement

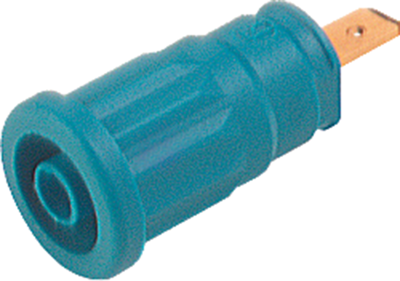

SEP 2610 F4,8 BL Hirschmann Test & Measurement Laboratory Connectors Image 1

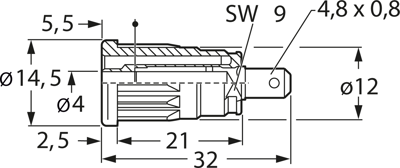

SEP 2610 F4,8 BL Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Available: 50 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
1.3209 €
50 pcs.
1.2138 €
100 pcs.
1.1424 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M SEP.

Compliant with IEC 61010. For 4.0 mm safety laboratory plugs, touch-proof. For installation in switchboard panels with thickness from 1.0 to 10 mm. With 4.8 x 0.8 mm tab terminals; Contact material: gold-plated brass. Rated voltage: 1000 VUC, CAT II. Rated current: 24 A. Contact resistance: 5.0 mohm. Operating temperatures: - 40 to +80 °C, color: blue.

With 4.8 x 0.8 mm tab terminals, type SEP 2610 F4,8.

Technical specifications
Connection flat plug connection
Version press-in socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 12.2 mm
Colour blue
contact surface gold-plated
Length 32 mm
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
