SEP 2610 F4,8 WS | Hirschmann Test & Measurement

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, white, SEP 2610 F4,8 WS

Order No.: 25F2091
EAN: 4099891949723
MPN:
SEP 2610 F4,8 WS
972 361-107
Series: SEP 2610 F4,8
Hirschmann Test & Measurement
SEP 2610 F4,8 WS Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
1.3209 €
50 pcs.
1.2138 €
100 pcs.
1.1424 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale

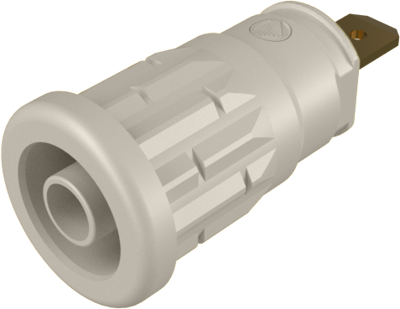

Laboratory connector, SEP 2610 F4,8 WS, Hirschmann Test & Measurement

The SEP 2610 F4,8 WS is a safety press-in socket, 4 mm diameter, contact-protected, with 4.8 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm.

Technical specifications
Connection flat plug connection
Version press-in socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 12.2 mm
Colour white
contact surface gold-plated
Length 32 mm
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
