SEP 2620 F6,3 GN | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, SEP 2620 F6,3 GN
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Available in 6 Days: 400 pcs.
Leadtime: On Request **
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2372 €
10 pcs.
1.9040 €
50 pcs.
1.7493 €
100 pcs.
1.6660 €
500 pcs.
1.5232 €
*incl. VAT plus shipping costs
**Subject to prior sale

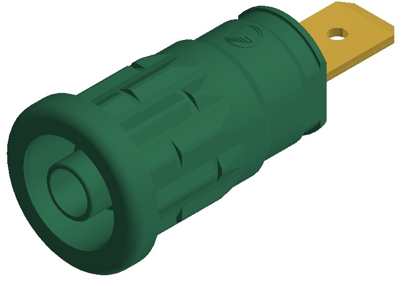

Laboratory connector, SEP 2620 F6,3 GN, Hirschmann Test & Measurement
The SEP 2620 F6,3 GN is a safety press-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm.
Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Einpressbuchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | grün | |
| Kontaktoberfläche | vergoldet | |
| Länge | 33 mm | |
| Messkategorie | CAT III |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
