SEP 2630 S1,9 GE | Hirschmann Test & Measurement

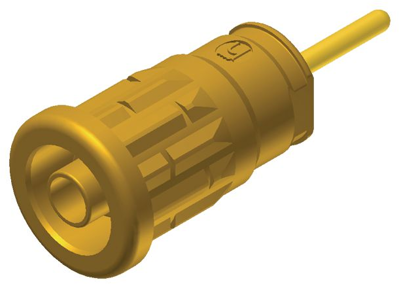

4 mm socket, solder connection, mounting Ø 12.2 mm, CAT III, yellow, SEP 2630 S1,9 GE

Order No.: 22F403
EAN: 4099889670097
MPN:
SEP 2630 S1,9 GE
972 363-103
Series: SEP 2630 S1,9
Hirschmann Test & Measurement
SEP 2630 S1,9 GE Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Available in 6 Days: 150 pcs.
Leadtime: On Request **
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
10 pcs.
1.3566 €
50 pcs.
1.2495 €
100 pcs.
1.1781 €
500 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale

Laboratory connector, SEP 2630 S1,9 GE, HIRSCHMANN

The SEP 2630 S1,9 GE is a safety press-in socket with 4 mm diameter and has protected contacts with 1.9 mm soldering spike. It is used for installation into switchpanels with wall thicknesses between 1 mm and 10 mm and the installation hole is 12.2 +/-0.1 mm in diameter.

Technical specifications
Connection solder connection
Version press-in socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 12.2 mm
Colour yellow
contact surface gold-plated
Length 36 mm
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
