SLS 10 B WS | Hirschmann Test & Measurement
4 mm plug, solder connection, 2.5 mm², CAT O, white, SLS 10 B WS
Unit Price (€ / pc.)
3.7366 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.3915 €
50 pcs.
3.1178 €
100 pcs.
2.8441 €
500 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale

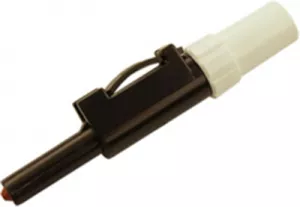

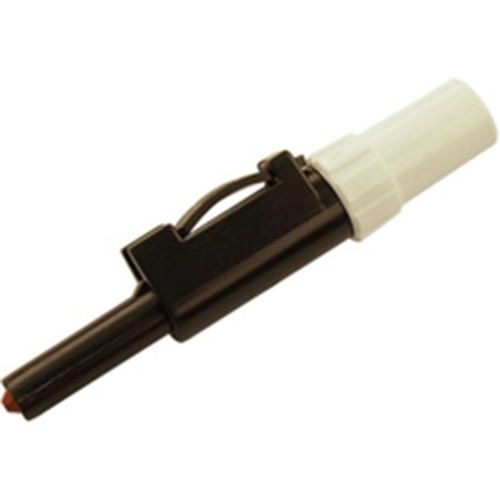

Laboratory plugs, 4.0 mm, type Hirschmann T & M SLS.
Touch-proof, insulated with latching and spring-loaded insulating sleeve that can only be released by pressing the lock spring on the side; Pin diameter: 4.0 mm with lamella spring. Contact material: nickel-plated copper beryllium. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 5.0 mohm.Operating temperatures: - 25 to +80 °C.
Solder connection up to 2.5 mm², type SLS 10 B, color white.
Technical specifications
| Connection | Lötanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | weiß | |
| contact surface | vernickelt | |
| Length | 67 mm | |
| Cable cross-section | 2,5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
