SLS 20 B SW | Hirschmann Test & Measurement

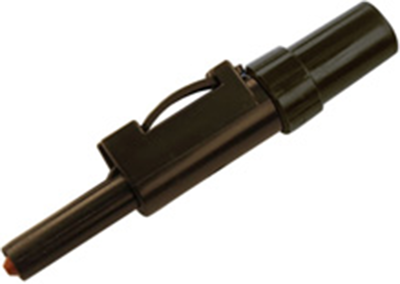

4 mm plug, screw connection, 1.5 mm², CAT O, black, SLS 20 B SW
Unit Price (€ / pc.)
4.2840 € *
Available: 0 pcs.
Available in 6 Days: 750 pcs.
Leadtime: On Request **
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
10 pcs.
3.8675 €
50 pcs.
3.5700 €
100 pcs.
3.2606 €
500 pcs.
3.0583 €
*incl. VAT plus shipping costs
**Subject to prior sale
Laboratory plugs, 4.0 mm, type Hirschmann T & M SLS.
Touch-proof, insulated with latching and spring-loaded insulating sleeve that can only be released by pressing the lock spring on the side; Pin diameter: 4.0 mm with lamella spring. Contact material: nickel-plated copper beryllium. Rated voltage: up to 150 VDC, CAT II to IEC/EN 61010-31. Rated current: 16A. Contact resistance: 5.0 mohm. Operating temperatures: - 25 to +80 °C.
Screw connection up to 1.5 mm², type SLS 20 B, color black.
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 67 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
