VQ 30 GE | Hirschmann Test & Measurement

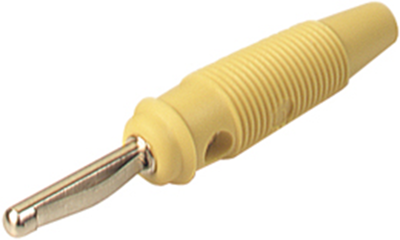

4 mm plug, solder connection, 2.5 mm², CAT O, yellow, VQ 30 GE
Unit Price (€ / pc.)
1.1662 € *
Available: 23 pcs.
Leadtime: On Request **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
50 pcs.
1.0353 €
100 pcs.
0.8925 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fully mating connectors, 4.0 mm, type Hirschmann T & M VQ.
Step-on-proof, flexible insulating sleeve with transversal hole; Connection type: soldering up to 2.5 mm². Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 3.0 mohm. Operating temperatures: - 25 to +70 °C.
Technical attributes: type: VQ 30, color: yellow, solder connection: up to 2.5 mm².
Technical specifications
| Connection | Lötanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | gelb | |
| contact surface | vernickelt | |

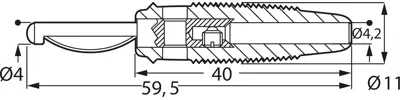

| Length | 61 mm | |
| Cable cross-section | 2,5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
