VQ 30 GN | Hirschmann Test & Measurement

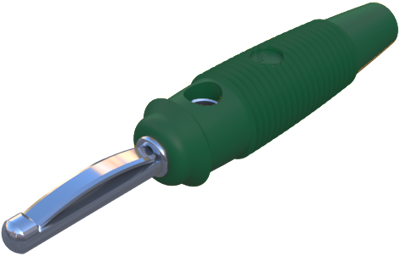

4 mm plug, solder connection, 2.5 mm², CAT O, green, VQ 30 GN
Unit Price (€ / pc.)
1.1662 € *
Available: 15 pcs.
Next delivery: 100 pcs. on 2025-01-14
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
50 pcs.
1.0353 €
100 pcs.
0.8925 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fully mating connectors, 4.0 mm, type Hirschmann T & M VQ.
Step-on-proof, flexible insulating sleeve with transversal hole; Connection type: soldering up to 2.5 mm². Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 3.0 mohm. Operating temperatures: - 25 to +70 °C.
Solder connection up to 2.5 mm², type VQ 30.
Technical attributes (type, color): VQ 30, green
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | green | |
| contact surface | nickel-plated | |
| Length | 61 mm | |
| Cable cross-section | 2.5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
