VQ 30 RT | Hirschmann Test & Measurement

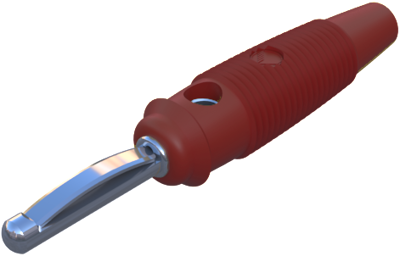

4 mm plug, solder connection, 2.5 mm², CAT O, red, VQ 30 RT

Order No.: 10F360
EAN: 4099889663488
MPN:
VQ 30 RT
930 061-101
Series: VQ 30
Hirschmann Test & Measurement
VQ 30 RT Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Available: 283 pcs.
Available in 6 Days: 150 pcs.
Leadtime: On Request **
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
50 pcs.
1.0710 €
100 pcs.
0.9282 €
500 pcs.
0.8092 €
1000 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fully mating connectors, 4.0 mm, type Hirschmann T & M VQ.

Step-on-proof, flexible insulating sleeve with transversal hole; Connection type: soldering up to 2.5 mm². Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 3.0 mohm. Operating temperatures: - 25 to +70 °C.

Technical attributes: type: VQ 30, color: red, Solder connection: up to 2.5 mm².


Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 30 A
Touch safe No
diameter 4 mm
Colour red
contact surface nickel-plated
Length 61 mm
Cable cross-section 2.5 mm²
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
