VST 100 | Hirschmann Test & Measurement
4 mm panel plug, screw connection, 1.5 mm², mounting Ø 2.5 mm, CAT O, silver, VST 100
Unit Price (€ / pc.)
1.0591 € *
Available: 180 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9401 €
100 pcs.
0.8092 €
500 pcs.
0.7140 €
1000 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale

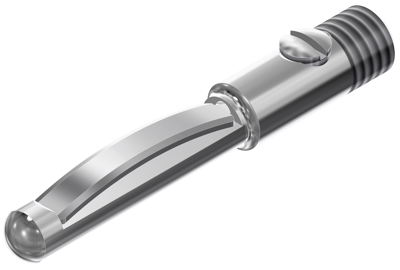

Plug pins, 4.0 mm for PCBs and front panels, type Hirschmann T & M VST 100.
Fully mating version. With screw terminals for cross-sections up to 1.5 mm² and M 5 outer thread; Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: –25 to +100 °C.
Type: VST 100, plug pin
Technical specifications
| Connection | screw connection | |
| Version | panel plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 2.5 mm | |
| Colour | silver | |
| contact surface | nickel-plated | |
| Length | 34 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
