VST 20 | Hirschmann Test & Measurement

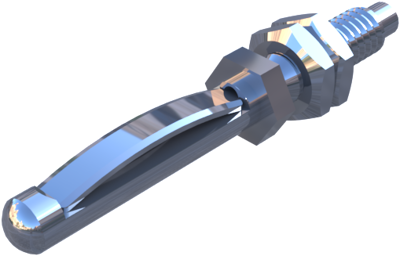

4 mm panel plug, screw connection, 2.0 mm², CAT O, silver, VST 20

Order No.: 12F140
EAN: 4099889663990
MPN:
VST 20
930 050-000
Series: VST 20
Hirschmann Test & Measurement
VST 20 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 941 pcs.
Leadtime: On Request **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.3090 €
100 pcs.
1.2019 €
500 pcs.
1.1543 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug pins, 4.0 mm for PCBs and front panels, type Hirschmann T & M VST 20.

Fully mating version. With solder connection for cross-sections up to 2.0 mm² and two M 4 mounting nuts; Contact material: nickel-plated brass. Rated voltage: 30 VAC/60 VDC. Rated current: 16 A. Operating temperatures: –25 to +100 °C.

Type: VST 20, plug pin

Technical specifications
Anschluss Schraubanschluss
Ausführung Einbaustecker
Bemessungsspannung 30 VAC/60 VDC
Bemessungsstrom 16 A
Berührungssicher No
Durchmesser 4 mm
Farbe silber
Kontaktoberfläche vernickelt
Länge 38 mm
Leiterquerschnitt 2,0 mm²
Messkategorie CAT O
Stapelbar No
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Originalverpackung Karton mit 100 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
