KB 3 SCHWARZ | Hirschmann Test & Measurement

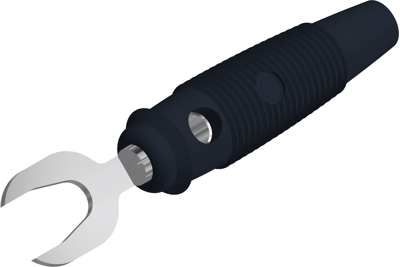

Laboratory cable lug with cross hole, cable lug 4-7 mm to solder connection, black, CAT O, KB 3 SCHWARZ
Unit Price (€ / pc.)
1.8088 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
25 pcs.
1.7136 €
50 pcs.
1.6184 €
100 pcs.
1.5470 €
500 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale
Adapter for laboratory connector, KB 3 SCHWARZ, Hirschmann T&M
Cable lug with shatter-proof, flexible insulated sleeve with 4 mm diameter transverse hole. Solder connection up to a maximum of 2.5 mm². For connection to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.
Technical Data
- Version: Cable lug adapter
- Colour: black
- Rated voltage: 30 VAC/60 VDC
- Rated current: 30 A
Technical specifications
| Version | Laborkabelschuh mit Querloch | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Colour | schwarz | |
| contact surface | vernickelt | |
| Rated category | CAT O | |
| Site (1) | Kabelschuh 4-7 mm | |
| Site (2) | Lötanschluss |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
