MICRO-PRUEF MPS 2 0,64 FT RT | Hirschmann Test & Measurement

Name: Miniature test probe, pin 0.64 mm, unsprung, 30 V, red, MICRO-PRUEF MPS 2 0,64 FT RT
Brand: Hirschmann Test & Measurement
SKU: 35F1134
Price: 9.84 EUR
Availability: InStock

Miniature test probe, pin 0.64 mm, unsprung, 30 V, red, MICRO-PRUEF MPS 2 0,64 FT RT

Order No.: 35F1134

EAN: 4099891479534

MPN:

MICRO-PRUEF MPS 2 0,64 FT RT

973 995-101

Series: MICRO-PRUEF MPS 2 0,64 FT

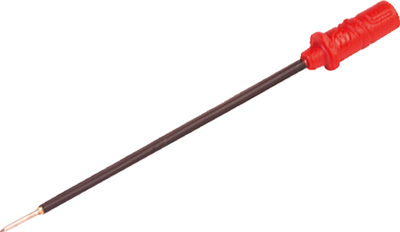

MICRO-PRUEF MPS 2 0,64 FT RT Hirschmann Test & Measurement Test Leads and Test Probes Image 1

MICRO-PRUEF MPS 2 0,64 FT RT Hirschmann Test & Measurement Test Leads and Test Probes Image 2

Image may differ

Key Specification:

Connection pin 0.64 mm, unsprung

Rated voltage 30 V

Colour red

Material Insulation PBT

Contact material stainless steel, rhodium

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.8413 € *

Available: 13 pcs.

Available in 6 Days: 700 pcs.

Leadtime: On Request **

Total Price:

9.84 € *

Price list

Quantity

Price per unit*

1 pcs.

9.8413 €

20 pcs.

8.6632 €

40 pcs.

8.3657 €

100 pcs.

7.8897 €

500 pcs.

7.5208 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature test probes, type Hirschmann T & M MICRO-PRUEF MPS 2 0,64 FT.

With spring-loaded probe tip for sampling intricate measuring points and SMD components; Contact material: stainless steel, rhodium. Connection: pin contact, diameter 0.64 mm, gold-plated. Rated voltage: 60 VDC. Contact resistance: 16 mohm. Operating temperatures: –25 to +80 °C.

Technical attributes (type, color): MICRO-PRUEF MPS 2 0,64 FT, red

Technical specifications
