MICRO-PRUEF MPS 2 0,64 FT SW | Hirschmann Test & Measurement

Name: Miniature test probe, pin 0.64 mm, unsprung, 30 V, black, MICRO-PRUEF MPS 2 0,64 FT SW
Brand: Hirschmann Test & Measurement
SKU: 35F1132
Price: 9.50 EUR
Availability: InStock

Miniature test probe, pin 0.64 mm, unsprung, 30 V, black, MICRO-PRUEF MPS 2 0,64 FT SW

Order No.: 35F1132

EAN: 4099891479527

MPN:

MICRO-PRUEF MPS 2 0,64 FT SW

973 995-100

Series: MICRO-PRUEF MPS 2 0,64 FT

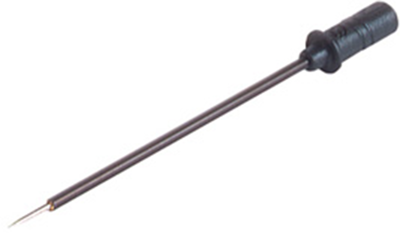

MICRO-PRUEF MPS 2 0,64 FT SW Hirschmann Test & Measurement Test Leads and Test Probes Image 1

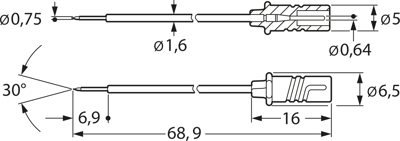

MICRO-PRUEF MPS 2 0,64 FT SW Hirschmann Test & Measurement Test Leads and Test Probes Image 2

Image may differ

Key Specification:

Connection Stift 0,64 mm, ungefedert

Rated voltage 30 V

Colour schwarz

Material Insulation PBT

Contact material Edelstahl, Rhodium

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.4962 € *

Available: 43 pcs.

Available in 6 Days: 180 pcs.

Leadtime: On Request **

Total Price:

9.50 € *

Price list

Quantity

Price per unit*

1 pcs.

9.4962 €

20 pcs.

8.3657 €

40 pcs.

8.0682 €

100 pcs.

7.6160 €

500 pcs.

7.2590 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature test probes, type Hirschmann T & M MICRO-PRUEF MPS 2 0,64 FT.

With spring-loaded probe tip for sampling intricate measuring points and SMD components; Contact material: stainless steel, rhodium. Connection: pin contact, diameter 0.64 mm, gold-plated. Rated voltage: 60 VDC. Contact resistance: 16 mohm. Operating temperatures: –25 to +80 °C.

Technical attributes (type, color): MICRO-PRUEF MPS 2 0,64 FT, black

Technical specifications
