PRUEF 1600 AU SW | Hirschmann Test & Measurement
Test probe, socket 2 mm, rigid, 1 kV, black, PRUEF 1600 AU SW
Unit Price (€ / pc.)
6.2237 € *
Available: 0 pcs.
Available in 6 Days: 60 pcs.
Leadtime: On Request **
Total Price:
6.22 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2237 €
20 pcs.
5.8786 €
100 pcs.
5.5335 €
500 pcs.
5.3312 €
1000 pcs.
4.9861 €
*incl. VAT plus shipping costs
**Subject to prior sale

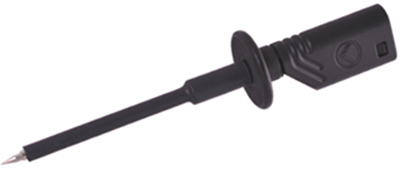

Safety test probes, type SKS/Hirschmann T & M PRUEF 1600 Au.
Step-on-proof insulating sleeve and slim stainless steel tip (penetrates insulation and oxide layers); Pin diameter: 1.4 mm. Connection: 2.0 mm jack. Rated voltage: 1000 VUC. Rated current: 10 A. Contact resistance: 20 mohm. Measuring category: CAT III. Material housing/tip/jack: PA/stainless steel/brass. Tip/jack finish: nickel/gold. Operating temperatures: –25 to +70 °C.
Type: PRUEF 1600 Au, black
Technical specifications
| Connection | socket 2 mm, rigid | |
| Colour | black | |
| Material Insulation | PA | |
| Contact material | brass | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
