PRUEF 1610 FT AU RT | Hirschmann Test & Measurement

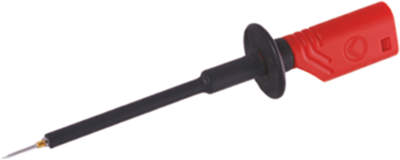

Test probe, socket 2 mm, rigid, 1 kV, red, PRUEF 1610 FT AU RT
Unit Price (€ / pc.)
8.1039 € *
Available: 26 pcs.
Available in 6 Days: 80 pcs.
Leadtime: On Request **
Total Price:
8.10 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1039 €
20 pcs.
7.1281 €
100 pcs.
6.6045 €
500 pcs.
6.3546 €
1000 pcs.
6.0333 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety test probes, type SKS/Hirschmann T & M PRUEF 1610 FT Au.
Step-on-proof insulating sleeve and slim stainless steel tip (penetrates insulation and oxide layers); Pin diameter: 0.75 mm. Connection: 2.0 mm jack. Rated voltage: 1000 V AC/DC. Rated current: 10 A. Contact resistance: 20 mohm. Measuring category: CAT II. Material housing/tip/jack: PA/stainless steel/brass. Tip/jack finish: rhodium/gold. Operating temperatures: –25 to +70 °C.
Type: PRUEF 1610 FT Au, red
Technical specifications
| Anschluss | Buchse 2 mm, starr | |
| Farbe | rot | |
| Isolationsmaterial | PA | |
| Kontaktmaterial | Messing | |
| Nennspannung | 1 kV |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
