MAL N 4-0,64/100-0,25 RT | Hirschmann Test & Measurement

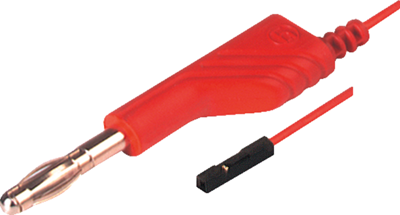

Measuring lead with (4 mm plug, spring-loaded, straight) to (0.64 mm socket, spring-loaded, straight), 1 m, red, PVC, 0.25 mm², CAT O, MAL N 4-0,64/100-0,25 RT
Order No.: 86F6746
EAN: 4099891078256
MPN:
MAL N 4-0,64/100-0,25 RT
934 160-101
Series: MAL N 4-0,64
Unit Price (€ / pc.)
6.2356 € *
Available: 10 pcs.
Available in 6 Days: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.4859 €
100 pcs.
4.8195 €
250 pcs.
4.6291 €
500 pcs.
4.3316 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test and connecting lead, type Hirschmann T & M MAL N 4-0,64/100-0,25.
One end with 40 mm connector and 40 mm jack for stacking, other end with insulated jack for round and square 0.64 mm pins. stranded wire lead with high flexibility and double insulation.Material contact pin: nickel-plated brassContact spring: nickel-plated copper berylliumLead material: PVCLead length: 10 mConductor cross-section: 025 mm²Rated voltage: 60 VDCRated current: 30 AOperating temperatures: –15 to +70 °C
Technical attributes (type, color): MAL N 4-064/100-0,25, red.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 0,64 mm Buchse, gefedert, gerade | |
| Cable length | 1 m | |
| Cable cross-section | 0,25 mm² | |
| Colour | rot | |
| Material | PVC | |
| contact surface | vernickelt | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 3 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
