MAL S WS 2-4 100/1 AU SW | Hirschmann Test & Measurement

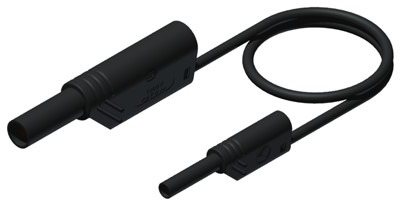

Measuring lead with (4 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 1 m, black, PVC, 1.0 mm², CAT II, MAL S WS 2-4 100/1 AU SW
Order No.: 86F3380
EAN: 4099891070090
MPN:
MAL S WS 2-4 100/1 AU SW
975 163-100
Series: MAL S WS 2-4
Unit Price (€ / pc.)
10.1864 € *
Available: 44 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
10.19 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1864 €
10 pcs.
8.9607 €
25 pcs.
8.3657 €
100 pcs.
7.9849 €
500 pcs.
7.5684 €
*incl. VAT plus shipping costs
**Subject to prior sale
Adapter test lead with 2.0 and 4.0 mm safety plugs, type Hirschmann T & M MAL S WS 2-4 100/1.
To IEC 61010, leads with 2.0 to 4.0 mm safety connectors, each with stacking options, touch-proof, step-on proof, highly flexible stranded wire with double insulation and integrated color indicator for the detection of damage to the insulationCable length: 10 mConductor cross-section: 10 mm²Contact material: gold-plated CuBeInsulation material: PVCRated voltage: 100 VUC, CAT IIIRated current: 10 AContact resistance: 21 mohmOperating temperatures: –15 to +70 °C
Type: MAL S WS 2-4 100/1, black.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 2 mm Stecker, gefedert, gerade | |
| Cable length | 1 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | PVC | |
| contact surface | vergoldet | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
