MLB 200/1 V GE | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, yellow, PVC, 1.0 mm², CAT O, MLB 200/1 V GE
Unit Price (€ / pc.)
11.7691 € *
Available: 21 pcs.
Leadtime: On Request **
Total Price:
11.77 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7691 €
25 pcs.
10.3292 €
50 pcs.
9.7580 €
100 pcs.
8.9012 €
500 pcs.
8.0325 €
*incl. VAT plus shipping costs
**Subject to prior sale

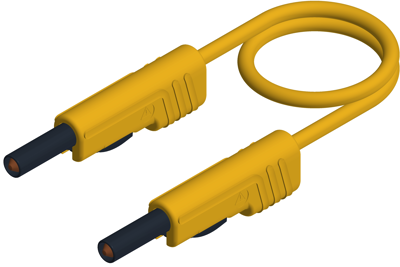

Measuring lead, MLB 200/1 V GE, Hirschmann T&M
Touch-protected measuring cable with plug spring-loaded on both sides Ø 4 mm, insulated by latching and spring-loaded insulating sleeve, which is only released by pressing released only by pressure on the lateral locking spring, and rigid socket Ø 4 mm for further plug-in. Highly flexible, double-insulated stranded cable with incorporated color indicator to detect damage to the insulation.

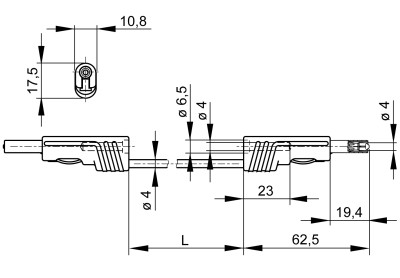

Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Berührungssicher | Yes | |
| Farbe | gelb | |
| Kabellänge | 2 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT O | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
