MLB 50/1 V GE/GN | Hirschmann Test & Measurement

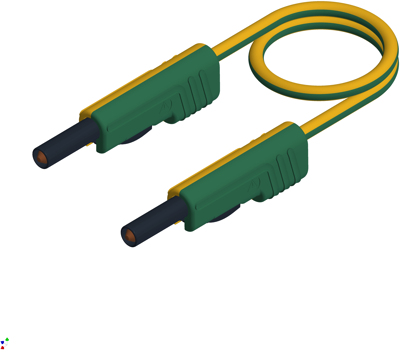

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.5 m, green/yellow, PVC, 1.0 mm², CAT O, MLB 50/1 V GE/GN
Unit Price (€ / pc.)
9.8651 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.87 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8651 €
25 pcs.
8.6513 €
50 pcs.
8.1753 €
100 pcs.
7.4494 €
500 pcs.
6.7354 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, MLB 50/1 V GE/GN, Hirschmann Test & Measurement
The MLB 50/1 V GE/GN is a contact protected test lead on both sides sprung plug Ø 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket Ø 4 mm to the far pluginess. Highly flexible, double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Berührungssicher | Yes | |
| Farbe | grün/gelb | |
| Kabellänge | 0.5 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT O | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
