MLN 200/2,5 AU RT | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, red, PVC, 2.5 mm², CAT O, MLN 200/2,5 AU RT
Unit Price (€ / pc.)
11.9119 € *
Available: 3 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
11.91 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9119 €
25 pcs.
10.3887 €
100 pcs.
9.5438 €
250 pcs.
8.9845 €
1000 pcs.
8.1396 €
*incl. VAT plus shipping costs
**Subject to prior sale

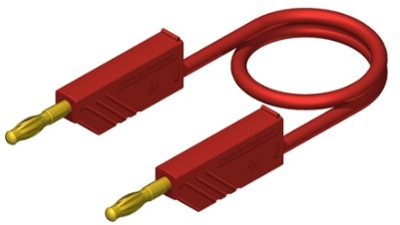

Measuring lead, MLN 200/2,5 AU RT, Hirschmann Test & Measurement
Double-insulated, highly flexible PVC test lead with integrated color indicator to detect damage to the cable. Both ends with spring-loaded 4 mm plug as well as rigid 4 mm socket, stackable. As contact element is a high quality copper beryllium spring.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | No | |
| Farbe | rot | |
| Kabellänge | 2 m | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PVC | |
| Messkategorie | CAT O | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
