MLN 50/2,5 AU RT | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.5 m, red, PVC, 2.5 mm², CAT O, MLN 50/2,5 AU RT
Unit Price (€ / pc.)
8.3776 € *
Available: 0 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
25 pcs.
7.3780 €
100 pcs.
6.7830 €
250 pcs.
6.3784 €
1000 pcs.
5.7834 €
*incl. VAT plus shipping costs
**Subject to prior sale

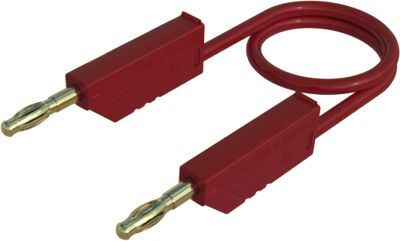

Measuring lead, MLN 50/2,5 AU RT, Hirschmann Test & Measurement
The MLN 50/2,5 AU RT is a measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | No | |
| Farbe | rot | |
| Kabellänge | 0.5 m | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PVC | |
| Messkategorie | CAT O | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
