MLS GG 100/1 GN | Hirschmann Test & Measurement

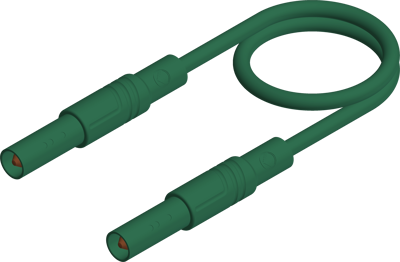

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, green, PVC, 1.0 mm², CAT III, MLS GG 100/1 GN
Unit Price (€ / pc.)
7.1519 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.15 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1519 €
10 pcs.
6.6164 €
25 pcs.
6.0809 €
100 pcs.
5.7239 €
250 pcs.
5.1884 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, MLS GG 100/1 GN, Hirschmann Test & Measurement
The MLS GG 100/1 GN is a safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 16 A | |
| Berührungssicher | Yes | |
| Farbe | grün | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
