MLS GG 25/2,5 BR | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.25 m, brown, PVC, 2.5 mm², CAT III, MLS GG 25/2,5 BR
Unit Price (€ / pc.)
6.6997 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **
Total Price:
6.70 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6997 €
10 pcs.
6.1880 €
25 pcs.
5.6882 €
100 pcs.
5.3550 €
250 pcs.
4.8552 €
*incl. VAT plus shipping costs
**Subject to prior sale

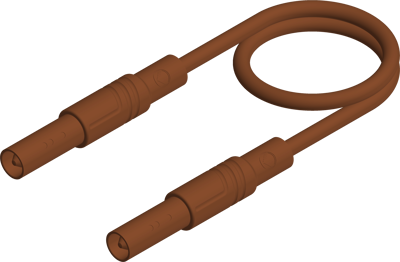

Measuring lead, MLS GG 25/2,5 BR, Hirschmann Test & Measurement
The MLS GG 25/2,5 BR is a safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Colour | brown | |
| Cable length | 0.25 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | PVC | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
