MLS SIL GG 100/1 GN | Hirschmann Test & Measurement

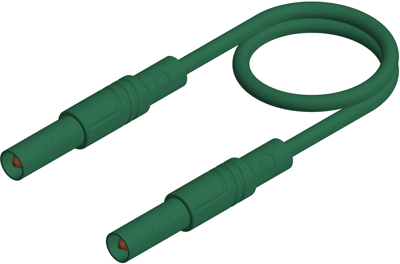

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, green, silicone, 1.0 mm², CAT III, MLS SIL GG 100/1 GN

Order No.: 86F9723
EAN: 4099891949266
MPN:
MLS SIL GG 100/1 GN
934 174-104
Series: MLS SIL GG
Hirschmann Test & Measurement
MLS SIL GG 100/1 GN Hirschmann Test & Measurement Test Leads
Image may differ
Unit Price (€ / pc.)
7.2590 € *
Available: 22 pcs.
Leadtime: On Request **
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2590 €
25 pcs.
6.6521 €
50 pcs.
6.2475 €
100 pcs.
5.8429 €
250 pcs.
5.4383 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MLS SIL GG 100/1 GN, Hirschmann Test & Measurement

The MLS SIL GG 100/1 GN is a safety silicone measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly fexible, double insulated stranded lead, high-temperature resistant, shatter-proof grip sleeve and lead. Built in colour indicator for easy identifcation of insulation damages.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 16 A
Touch safe Yes
Colour green
Cable length 1 m
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material silicone
Rated category CAT III
Stackable No
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
