MLS SIL WS 200/1 GE | Hirschmann Test & Measurement

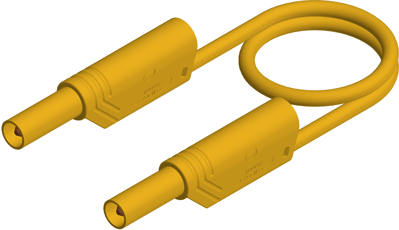

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, yellow, silicone, 1.0 mm², CAT II, MLS SIL WS 200/1 GE

Order No.: 86F9729
EAN: 4099891949327
MPN:
MLS SIL WS 200/1 GE
934 169-103
Series: MLS SIL WS
Hirschmann Test & Measurement
MLS SIL WS 200/1 GE Hirschmann Test & Measurement Test Leads
Image may differ
Unit Price (€ / pc.)
9.6033 € *
Available: 0 pcs.
Available in 6 Days: 75 pcs.
Leadtime: On Request **
Total Price:
9.60 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6033 €
25 pcs.
8.8060 €
50 pcs.
8.2705 €
100 pcs.
7.7350 €
250 pcs.
7.1995 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MLS SIL WS 200/1 GE, Hirschmann Test & Measurement

The MLS SIL WS 200/1 GE is a safety silicone measuring lead, at either end 4 mm diameter safety connector with onward connection capability (4 mm socket). Nickel-plated copper beryllium contact spring. Highly fexible, double insulated stranded lead, high-temperature resistant, shatter-proof grip sleeve and lead. Built in colour indicator for easy identifcation of insulation damages.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 16 A
Touch safe Yes
Colour yellow
Cable length 2 m
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material silicone
Rated category CAT II
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
