MLS WG 25/2,5 GE/GN | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 0.25 m, green/yellow, PVC, 2.5 mm², CAT III, MLS WG 25/2,5 GE/GN
Unit Price (€ / pc.)
7.9611 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
10 pcs.
7.3661 €
25 pcs.
6.5688 €
100 pcs.
5.9619 €
500 pcs.
5.5692 €
*incl. VAT plus shipping costs
**Subject to prior sale

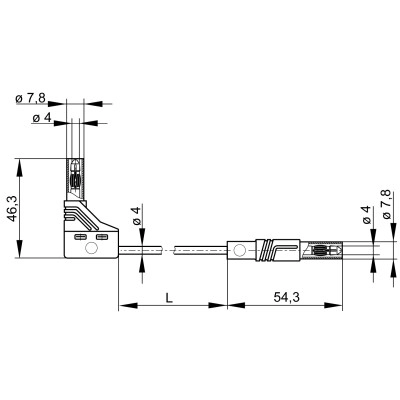

Measuring lead, MLS WG 25/2,5 GE/GN, Hirschmann Test & Measurement
Safety measuring lead, at either end 4 mm diameter safety connector with straight/rectangular outlet and integrated kink protection. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, abgewinkelt | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Farbe | grün/gelb | |
| Kabellänge | 0.25 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PVC | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
