MLS WS 50/1 GE/GN | Hirschmann Test & Measurement

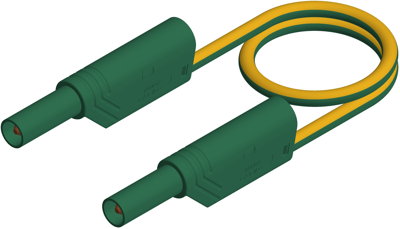

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.5 m, green/yellow, PVC, 1.0 mm², CAT II, MLS WS 50/1 GE/GN

Order No.: 86F9699
EAN: 4099891949013
MPN:
MLS WS 50/1 GE/GN
934 068-188
Series: MLS WS
MLS WS 50/1 GE/GN Hirschmann Test & Measurement Test Leads
Image may differ
Unit Price (€ / pc.)
7.8421 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.84 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8421 €
25 pcs.
7.0567 €
50 pcs.
6.6640 €
100 pcs.
6.2713 €
250 pcs.
5.8786 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MLS WS 50/1 GE/GN, Hirschmann Test & Measurement

Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages.

Technical specifications
Anschluss (1) 4 mm Stecker, gefedert, gerade
Anschluss (2) 4 mm Stecker, gefedert, gerade
Bemessungsspannung 1000 V
Bemessungsstrom 16 A
Berührungssicher Yes
Farbe grün/gelb
Kabellänge 0.5 m
Kontaktoberfläche vernickelt
Leiterquerschnitt 1,0 mm²
Material PVC
Messkategorie CAT II
Stapelbar Yes
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
