MVL 2/25 RT | Hirschmann Test & Measurement

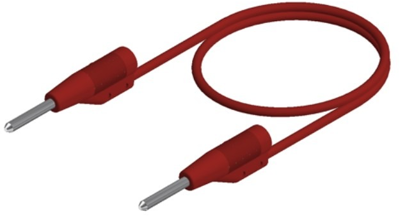

Measuring lead with (2 mm plug, rigid, straight) to (2 mm plug, rigid, straight), 250 mm, red, PVC, 0.5 mm², CAT O, MVL 2/25 RT
Unit Price (€ / pc.)
5.7239 € *
Available: 0 pcs.
Available in 6 Days: 70 pcs.
Leadtime: On Request **
Total Price:
5.72 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7239 €
10 pcs.
5.2717 €
50 pcs.
4.9742 €
100 pcs.
4.6767 €
250 pcs.
4.2245 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, MVL 2/25 RT, Hirschmann Test & Measurement
Overmolded test lead, 2 mm male connector on both sides, nickel-plated brass and 2 mm socket with contact spring for tower plug-in design. Highly flexible stranded cable, grip sleeve and cable tread-proof.
Technical specifications
| Connection (1) | 2 mm plug, rigid, straight | |
| Connection (2) | 2 mm plug, rigid, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Touch safe | No | |
| Colour | red | |
| Cable length | 250 mm | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Rated category | CAT O | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
