MVL 2/50 SW | Hirschmann Test & Measurement
Measuring lead with (2 mm plug, rigid, straight) to (2 mm plug, rigid, straight), 500 mm, black, PVC, 0.5 mm², CAT O, MVL 2/50 SW
Unit Price (€ / pc.)
6.3070 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
6.31 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3070 €
10 pcs.
5.8072 €
50 pcs.
5.4740 €
100 pcs.
5.1408 €
250 pcs.
4.6410 €
*incl. VAT plus shipping costs
**Subject to prior sale

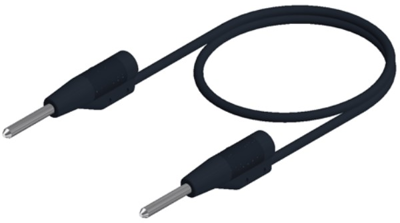

Measuring lead, MVL 2/50 SW, Hirschmann Test & Measurement
Overmolded test lead, 2 mm male connector on both sides, nickel-plated brass and 2 mm socket with contact spring for tower plug-in design. Highly flexible stranded cable, grip sleeve and cable tread-proof.
Technical specifications
| Anschluss (1) | 2 mm Stecker, starr, gerade | |
| Anschluss (2) | 2 mm Stecker, starr, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 6 A | |
| Berührungssicher | No | |
| Farbe | schwarz | |
| Kabellänge | 500 mm | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Messkategorie | CAT O | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
