MVL S WS 100/1 AU BR | Hirschmann Test & Measurement

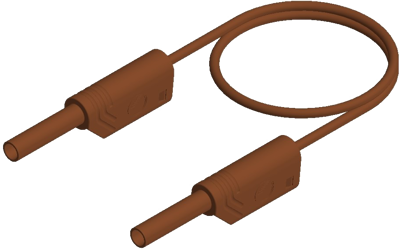

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 1 m, brown, PVC, 1.0 mm², CAT III, MVL S WS 100/1 AU BR
Unit Price (€ / pc.)
8.8655 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.87 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8655 €
25 pcs.
8.1515 €
50 pcs.
7.6636 €
100 pcs.
7.1876 €
250 pcs.
6.7116 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, MVL S WS 100/1 AU BR, Hirschmann Test & Measurement
Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.
Technical specifications
| Anschluss (1) | 2 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 2 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | Yes | |
| Farbe | braun | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT III | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
