MVL S WS 200/1 AU BR | Hirschmann Test & Measurement

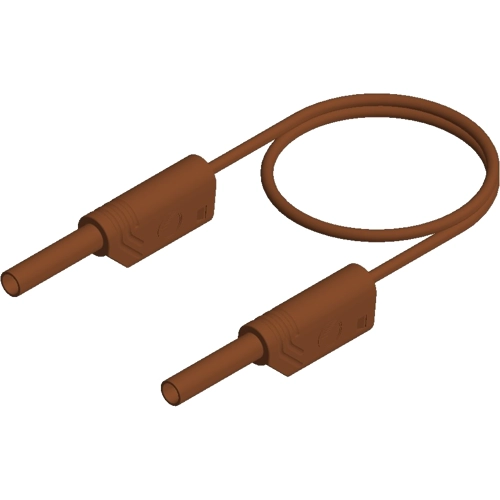

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 2 m, brown, PVC, 1.0 mm², CAT III, MVL S WS 200/1 AU BR

Order No.: 86F9617
EAN: 4099891947408
MPN:
MVL S WS 200/1 AU BR
975 698-705
Series: MVL S WS
Hirschmann Test & Measurement
MVL S WS 200/1 AU BR Hirschmann Test & Measurement Test Leads
Image may differ
Unit Price (€ / pc.)
10.6267 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
10.63 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6267 €
25 pcs.
9.7580 €
50 pcs.
9.1868 €
100 pcs.
8.6156 €
250 pcs.
8.0444 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MVL S WS 200/1 AU BR, Hirschmann Test & Measurement

Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.

Technical specifications
Connection (1) 2 mm plug, spring-loaded, straight
Connection (2) 2 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 10 A
Touch safe Yes
Colour brown
Cable length 2 m
contact surface gold-plated
Cable cross-section 1.0 mm²
Material PVC
Rated category CAT III
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
