MVL S WS 25/1 AU GR | Hirschmann Test & Measurement
Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 250 mm, gray, PVC, 1.0 mm², CAT III, MVL S WS 25/1 AU GR
Unit Price (€ / pc.)
7.7945 € *
Available: 0 pcs.
Available in 6 Days: 75 pcs.
Leadtime: On Request **
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
25 pcs.
7.1638 €
50 pcs.
6.7473 €
100 pcs.
6.3189 €
250 pcs.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale

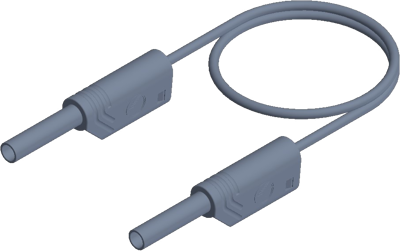

Measuring lead, MVL S WS 25/1 AU GR, Hirschmann Test & Measurement
Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.
Technical specifications
| Connection (1) | 2 mm plug, spring-loaded, straight | |
| Connection (2) | 2 mm plug, spring-loaded, straight | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| Colour | gray | |
| Cable length | 250 mm | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated category | CAT III | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
