MVL S WS 50/1 AU SW | Hirschmann Test & Measurement

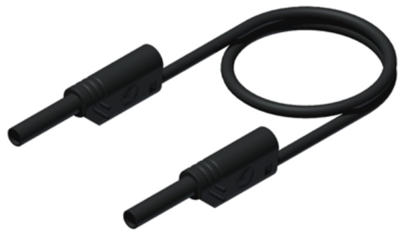

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 500 mm, black, PVC, 1.0 mm², CAT III, MVL S WS 50/1 AU SW
Unit Price (€ / pc.)
8.1753 € *
Available: 7 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **
Total Price:
8.18 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1753 €
25 pcs.
7.5089 €
50 pcs.
7.0686 €
100 pcs.
6.6283 €
250 pcs.
6.1880 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, MVL S WS 50/1 AU SW, Hirschmann Test & Measurement
Touch-proof test lead according to IEC 61010, both ends safety plug / socket with 2 mm diameter and further plug-in possibility. Contact spring copper-beryllium gold-plated. Highly flexible, double-insulated stranded cable, grip sleeve and cable tread-proof. Incorporated color indicator to detect damage to the insulation.
Technical specifications
| Connection (1) | 2 mm Stecker, gefedert, gerade | |
| Connection (2) | 2 mm Stecker, gefedert, gerade | |
| Cable length | 500 mm | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | PVC | |
| contact surface | vergoldet | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
