PL 2600 S BL | Hirschmann Test & Measurement

Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, straight), 1 m, blue, PVC, 1.0 mm², CAT II, PL 2600 S BL

Order No.: 86F6954
EAN: 4099891078324
MPN:
PL 2600 S BL
934 159-102
Series: PL 2600 S
Hirschmann Test & Measurement

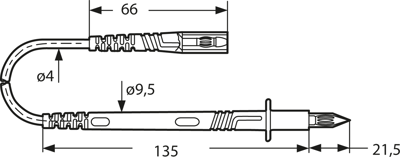

PL 2600 S BL Hirschmann Test & Measurement Test Leads Image 1

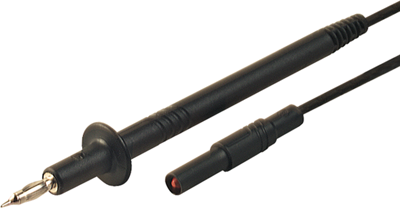

PL 2600 S BL Hirschmann Test & Measurement Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
12.3284 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
12.33 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3284 €
10 pcs.
10.8528 €
25 pcs.
10.2935 €
50 pcs.
9.8770 €
100 pcs.
9.2820 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, PL 2600 S BL, Hirschmann Test & Measurement

Touch proof test lead with dual function safety test tip. Tip for piercing oxide layers and 4 mm diameter pin. for insertion into sockets. 4 mm diameter safety plug with straight outlet.

Technical specifications
Connection (1) test probe, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 16 A
Touch safe Yes
Colour blue
Cable length 1 m
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material PVC
Rated category CAT II
Stackable No
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
