PL 2600 S SET | Hirschmann Test & Measurement
Measuring lead with (plug, spring-loaded, straight) to (straight), 1 m, black/red, PVC, 1.0 mm², CAT III, PL 2600 S SET
Unit Price (€ / pc.)
18.7187 € *
Available: 0 pcs.
Available in 6 Days: 62 pcs.
Leadtime: On Request **
Total Price:
18.72 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7187 €
5 pcs.
17.6834 €
10 pcs.
16.6362 €
25 pcs.
15.6009 €
50 pcs.
14.5656 €
*incl. VAT plus shipping costs
**Subject to prior sale

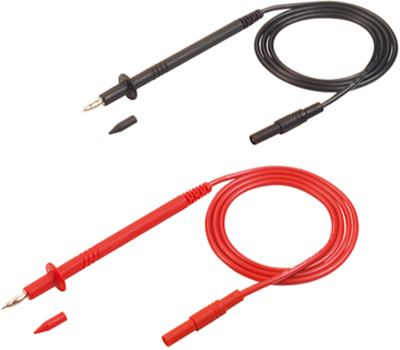

Measuring lead, PL 2600 S SET, Hirschmann Test & Measurement
Touch proof test lead with dual function safety test tip. Tip for piercing oxide layers and 4 mm diameter pin. for insertion into sockets. 4 mm diameter safety plug with straight outlet.
Technical specifications
| Connection (1) | plug, spring-loaded, straight | |
| Connection (2) | straight | |
| Rated Voltage | 1000 V | |
| Rated current | 16 A | |
| Touch safe | Yes | |
| Colour | black/red | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
