PL 2600 S W SET | Hirschmann Test & Measurement
Measuring lead with (2 x test probe, straight) to (2 x 4 mm plug, angled), 1 m, black/red, silicone, 1.0 mm², CAT II, PL 2600 S W SET
Unit Price (€ / pc.)
18.9567 € *
Available: 4 pcs.
Available in 6 Days: 52 pcs.
Leadtime: On Request **
Total Price:
18.96 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9567 €
5 pcs.
17.9095 €
10 pcs.
16.8504 €
25 pcs.
15.8032 €
50 pcs.
14.7441 €
*incl. VAT plus shipping costs
**Subject to prior sale

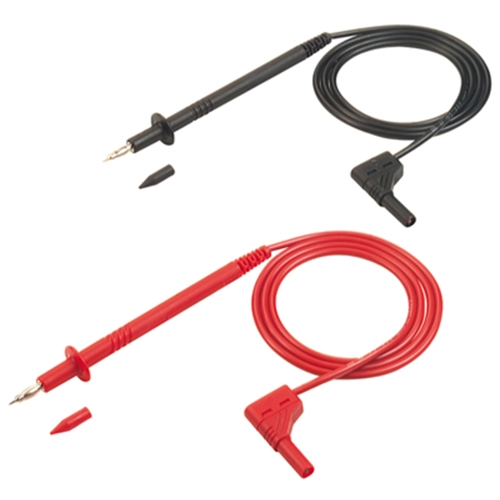

Measuring lead, PL 2600 S W SET, Hirschmann Test & Measurement
Touch proof test lead with dual function safety test tip. Tip for piercing oxide layers and 4 mm diameter pin. for insertion into sockets. 4 mm diameter safety plug with straight outlet.
Technical specifications
| Connection (1) | 2 x test probe, straight | |
| Connection (2) | 2 x 4 mm plug, angled | |
| Rated Voltage | 600 V | |
| Rated current | 16 A | |
| Touch safe | Yes | |
| Colour | black/red | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | silicone | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
