C1812X334K501T | HolyStone
Ceramic capacitor, 330 nF, 500 V (DC), ±10 %, SMD 1812, X7R, C1812X334K501T
Unit Price (€ / pc.)
0.6307 € *
Available: 700 pcs.
Leadtime: On Request **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
10 pcs.
0.4165 €
100 pcs.
0.2904 €
500 pcs.
0.2154 €
1000 pcs.
0.1964 €
*incl. VAT plus shipping costs
**Subject to prior sale

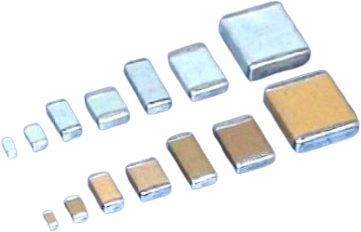

Multilayer ceramic chip capacitor, C1812X334K501T, HolyStone
The C1812X334K501T multilayer ceramic chip capacitor is well suited for commercial and industrial applications. The special internal electrode design offers the highest voltage rating.
Features
- Surface mount suitable for wave and reflow soldering
- High reliability
- RoHS compliant
Applications
- LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies
Technical specifications
| Bauform | SMD 1812 | |
| Dielektrikum | X7R | |
| Kapazität | 330 nF | |
| Länge | 4.6 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 500 V | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85322400 |
| Originalverpackung | Rolle mit 700 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
