HIH-4000-002 | Honeywell
Humidity sensor, 0-100 % RH, 4-5.8 V, HIH-4000-002, -40 to 85 °C, HIH-4000-002
Unit Price (€ / pc.)
70.2814 € *
Available: 0 pcs.
Available in 5 Days: 81 pcs.
Leadtime: 15 Weeks **

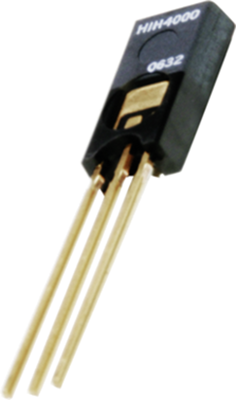

Hygro sensors, type Honeywell HIH-4000.
Chip with integrated signal processing unit. Laser trimmed, capacitive sensor element with additional polymeric coating (protection against dirt, dust, oil etc.); Operating range (moisture): 0 to 100 % rH, no condensation. Operating voltage: 4.0 to 5.8 V. Operating temperatures: –40 to +85 °C. Dimensions: 9.47 x 4.27 x 2.03 mm.
Type: HIH–4000–002, 1.27/2.54 mm grid
Technical specifications
| Version | Feuchtesensor | |
| max. operating temperature | 85 °C | |
| measurement range | 0-100 % rF | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage | 4-5,8 V |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90258040 |
| Original Packaging | Stange mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
