BG 70.18 12-48 V | Hugo Müller
Hours meter, BG 70.18 12-48 V
Order No.: 30K3374
EAN: 4022709201225
MPN:
BG 70.18 12-48 V
20122
Unit Price (€ / pc.)
40.4362 € *
Available: 35 pcs.
Leadtime: 1 Week **
Total Price:
40.44 € *
Price list
Quantity
Price per unit*
1 pcs.
40.4362 €
5 pcs.
38.0086 €
15 pcs.
36.5568 €
50 pcs.
34.9384 €
150 pcs.
33.4747 €
*incl. VAT plus shipping costs
**Subject to prior sale
Operating hours counters, type Müller BG../BW.

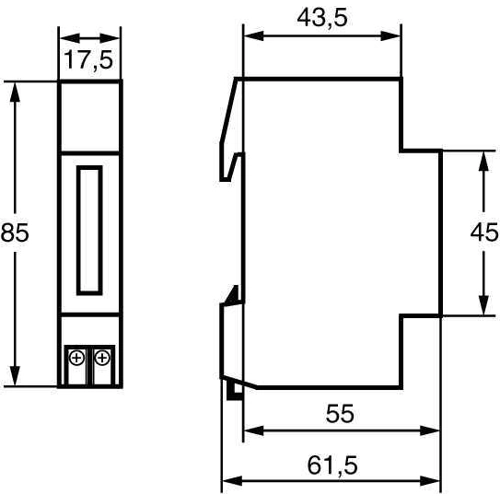

For installation in distribution cabinets. With snap-on fastener for 35 mm DIN rails. Slim design with a width of only 17.5 mm; Connection: terminals with wire protection. Digit height: 2.6 mm. Digit color: white, red decimals. Case: self-extinguishing thermoplastic, black. Dimensions (distribution cabinet cutout): 45 x 17.5 mm.
For DC voltage, type BG 70.18.
Counter capacity: 99.999 h. Reading precision: 0.1 h. Active state display: by LED. Power consumption: approx. 20 mW at 12 VDC. Ambient temperatures: –10 to +50 °C. Degree of protection: IP 50. Safety class: III.
Type: BG 70.18, 12 to 48 VDC
Technical specifications
| Connection | screw connection | |
| Width | 17.5 mm | |
| Installation depth | 55 mm | |
| Accuracy | 0.1 h | |
| Height | 85 mm | |
| Power consumption | 260 mW | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP50 | |
| Voltage | 12-48 VDC | |
| Max. hour counts | 99999 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
